What Does a UV Dye Search Find in an Air Conditioner?
HVAC UV dye is a fluorescent tracer that circulates with the system’s refrigerant oil. If refrigerant and oil escape through a small leak, the tracer remains at the leak site and fluoresces under a compatible ultraviolet inspection light. In this case, that evidence identified the evaporator coil as the leaking component.
- Location: Yukon, Oklahoma
- System configuration: 5-ton downflow HVAC system
- Diagnostic method: Refrigerant-compatible fluorescent UV dye
- Leak location: Indoor evaporator coil
- Repair: Failed evaporator coil removed and replaced
- Deep vacuum: Below 500 microns before charging
- Refrigerant added: Approximately 5 lb. 6 oz., plus adjustment for the long line set
- Measured cooling result: 17°F temperature split
- Final result: No leaks found after repair; normal cooling restored
How We Replaced the Leaking Evaporator Coil
Once the dye inspection confirmed the coil leak, replacing the failed coil addressed the source instead of repeatedly topping off a leaking system. Evaporator-coil replacement opens the sealed refrigeration circuit, so contamination control, leak testing, dehydration, and accurate charging matter as much as the physical part installation.
- Recovered the remaining refrigerant using proper service procedures

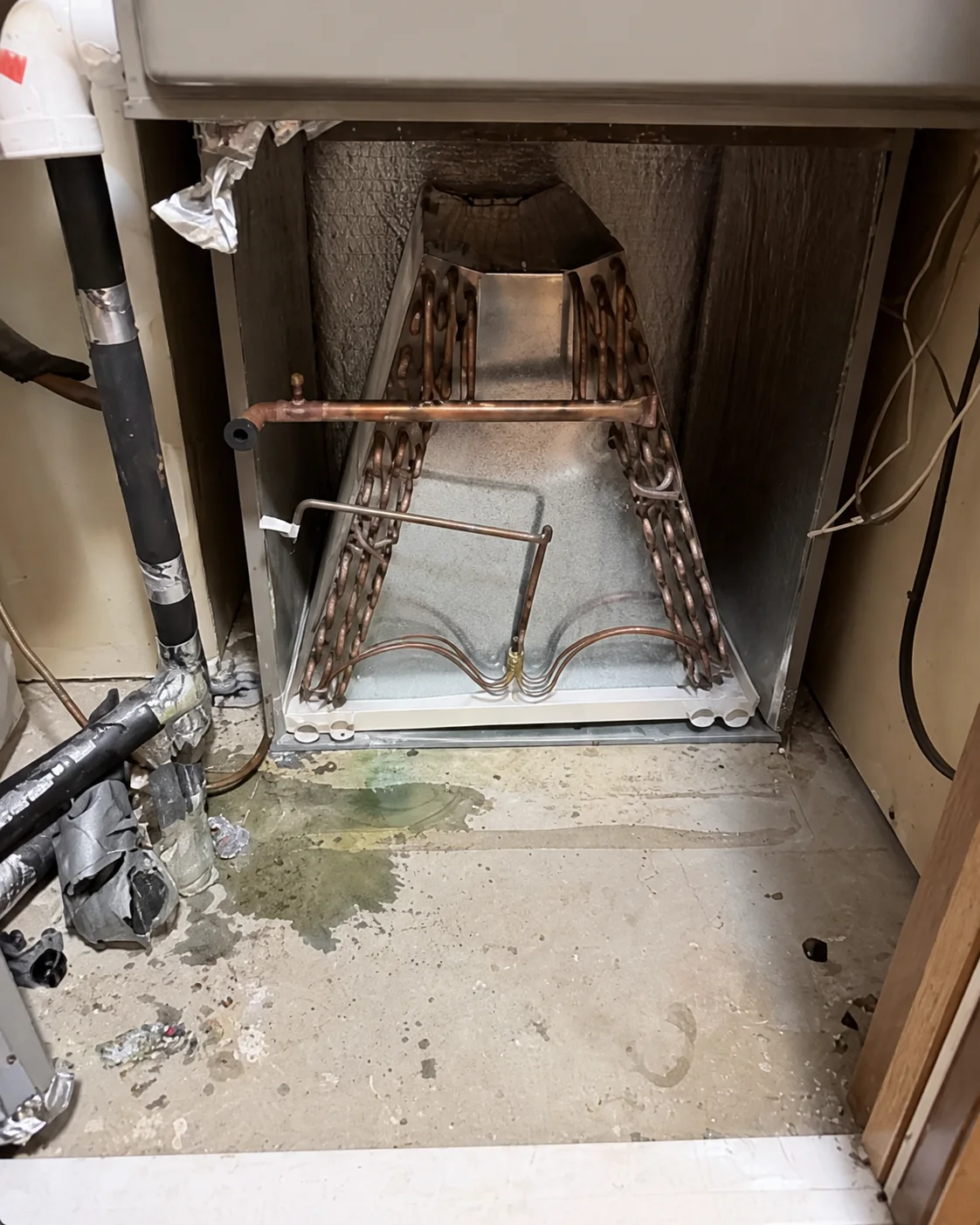

- Opened the indoor cabinet and removed the leaking evaporator coil
- Installed the correctly sized 5-ton downflow replacement coil
- Flowed nitrogen while brazing the refrigerant connections
- Pressure-tested the line set and new connections
- Confirmed the sealed circuit held pressure with no leaks present
- Pulled the system into a deep vacuum below 500 microns
- Added the required refrigerant charge and adjusted for the long line set
- Started the system in cooling mode and checked operating pressures
- Measured a 17°F air-temperature split across the evaporator coil
The system was leak-free at the completed connections, operating within manufacturer specifications, and cooling normally at departure.
Should a Leaking Evaporator Coil Be Repaired or Replaced?
The right answer depends on the exact leak location, coil condition, equipment age, refrigerant type, warranty coverage, repair access, and the cost of repairing the existing system compared with replacing more of the equipment. A technician should confirm the leak before recommending either option.
Evaporator coil replacements commonly cost between $1,500 and $3,500 and can usually be completed in one day. The exact price depends on coil size and availability, access, refrigerant, warranty coverage, and the additional materials required for that system. TradeStrong provides a job-specific price before beginning the replacement.
A localized, accessible leak may occasionally be repairable, but leaks in the coil tubing or fin pack often make coil replacement the more dependable repair. If the system is older, uses an expensive or phased-down refrigerant, has multiple leaks, or needs other major repairs, comparing full-system replacement can make sense.
Before replacing a coil, TradeStrong checks whether the component may qualify for a manufacturer’s parts warranty. Warranty terms vary by manufacturer, registration, equipment age, and ownership, and covered parts do not always include labor, refrigerant, shipping, or other materials. We confirm the available coverage before presenting replacement options.
Replacing the entire HVAC system is not automatically necessary when an evaporator coil leaks. We base that conversation on the system’s age, overall condition, repair history, efficiency, refrigerant type, and how satisfied the homeowner has been with its comfort and reliability. Sometimes a coil-only repair is the sensible choice; sometimes investing in a complete system is the better long-term option.
UV dye is one diagnostic tool—not a substitute for a complete diagnosis. Depending on the situation, a technician may also use an electronic leak detector, soap-bubble solution, nitrogen pressure testing, visual oil inspection, or isolation testing. The goal is evidence: find the leak before spending money on the repair.
Common Homeowner Questions
How does UV dye find an AC refrigerant leak?
A refrigerant-compatible fluorescent dye circulates with the system oil. Where refrigerant and oil escape, dye residue remains and glows under the correct UV inspection light, helping the technician pinpoint the leak.
Is UV dye safe for an air-conditioning system?
A dye specifically approved for the system’s refrigerant and oil can be used in the manufacturer-recommended amount. The technician should avoid incompatible products or excessive dye and should follow equipment and dye-manufacturer instructions.
How long does an AC dye leak search take?
TradeStrong can add refrigerant-compatible UV dye during the initial visit and return approximately 72 hours later to inspect the system for fluorescent evidence. The air conditioner needs to operate during that period so the dye can circulate. Very small or intermittent leaks can occasionally require additional run time or testing.
Can you just add refrigerant instead of replacing a leaking coil?
Adding refrigerant may temporarily restore cooling, but it does not seal the leak. The system can lose charge again, perform poorly, and risk compressor damage. The leak should be located and a repair or replacement decision made.
What should happen after an evaporator coil is replaced?
The sealed circuit should be pressure-tested, checked for leaks, evacuated to remove air and moisture, charged to the equipment specifications, and tested in operation using measurements such as pressures and air-temperature split.
How much does evaporator coil replacement cost?
Evaporator coil replacement commonly costs between $1,500 and $3,500. The final price depends on equipment size, coil availability, installation access, refrigerant requirements, warranty coverage, and the materials needed for the specific system. TradeStrong confirms the job-specific price before work begins.
How long does it take to replace an evaporator coil?
Most evaporator coil replacements can be completed in one day. Equipment availability, difficult access, system configuration, or additional repairs can affect the schedule, so TradeStrong confirms the expected timing with the homeowner before replacement.
Is an evaporator coil covered by the manufacturer’s warranty?
Sometimes. Coverage depends on the manufacturer, product registration, equipment age, warranty terms, and ownership. A parts warranty may not cover labor, refrigerant, shipping, or related materials. TradeStrong checks and confirms available manufacturer coverage before replacing the coil.
Should I replace the evaporator coil or the entire HVAC system?
The decision should consider the system’s age, condition, repair history, efficiency, refrigerant type, warranty coverage, and the homeowner’s overall satisfaction with its comfort and reliability. A coil-only replacement may be the best value on a sound system, while complete replacement is sometimes the better long-term option for older or unreliable equipment.
